● Patent design, good heat dissipation.
● Lumen Efficacy: 100LM/W, 125LM/W. High efficiency & energy saving.
● Function: ON-OFF / 1-10V dimming / Dali Dimming / Emergency (30% Power, 3H) / Microwave Sensor.

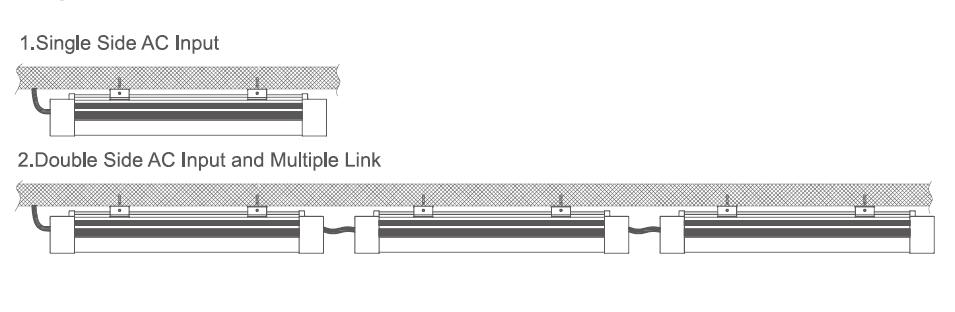

● Single or Double wiring. Single Side AC Input or Double Side Multiple Link.
● Different size are available, 0.6m, 1.2m and 1.5m.
● Material: Aluminum + PC Cover.
● Easy for installation and shipping.
● Use high quality material, make longer life span.
● IP 65 / IK10 Approval.
● Uniform light output, bright and comfortable, alleviating eye fatigue, wide beam angle.
● 5 years warranty.

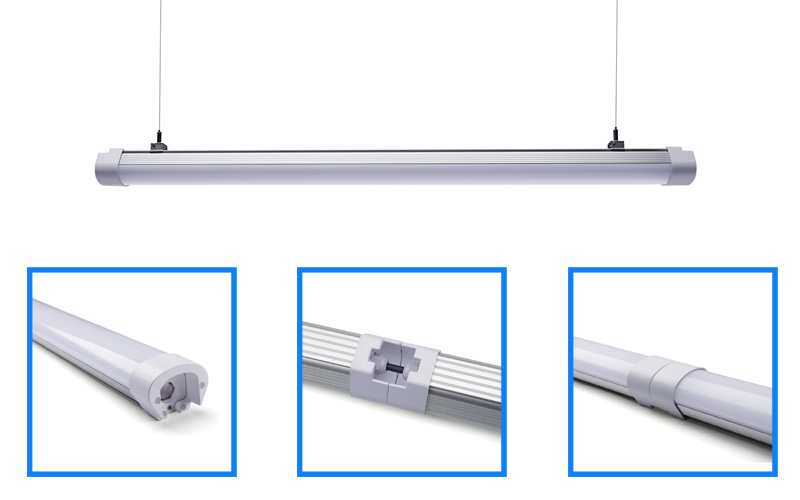

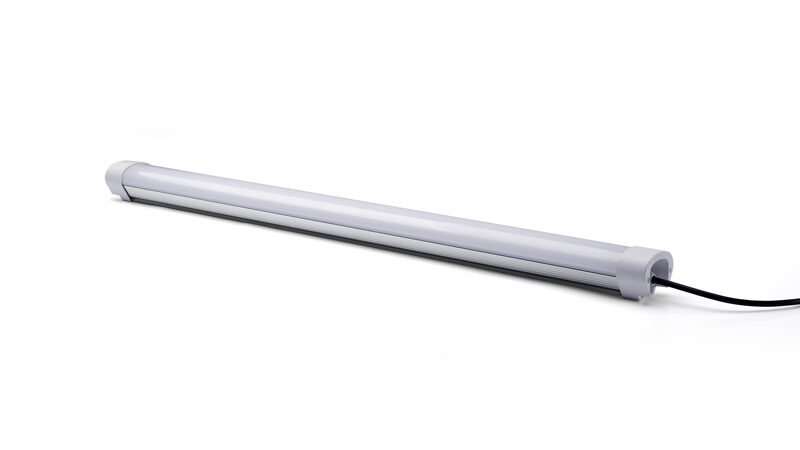

Linkable 1.2m IP65 40W LED Tri-proof Light with 5 Years Warranty
Model: SNS-TPT-1200-40W
Rated Power: 40W
Dimension(mm): 1200*86*74mm
Input Voltage: 180-265V AC( Function: ON-OFF / Emergency),
100-277V AC(1-10V dimming / Dali Dimming / Microwave Sensor)
Driver: Lifud driver
Function: ON-OFF / 1-10V dimming / Dali Dimming / Emergency (30% Power, 3H) / Microwave Sensor.
LED Type: 288pcs SMD2835, Epistar chip
Lumen Efficacy: 100lm/W, 125lm/W
LED Color: WW, DW, CW
Color Temperature: 3000K, 4000K, 6000K
CRI: Ra>80
PF: >0.95
Protection Class: IP65/IK10
Material: Aluminum + PC Cover
Beam Angle: 120°
Installation: Surface Mounted / Suspension
Wiring method: Single side AC Input or Double side AC Input Linkable
Warranty: 5 Years
1. Fish tank, chicken farms, pig farms, Herbs shed, vegetable shed, Bridges, commercial building edges.
2. Outdoor lighting, Refrigerator or freezer show lighting, Cold storage lighting, Other humid environments lighting, etc.
