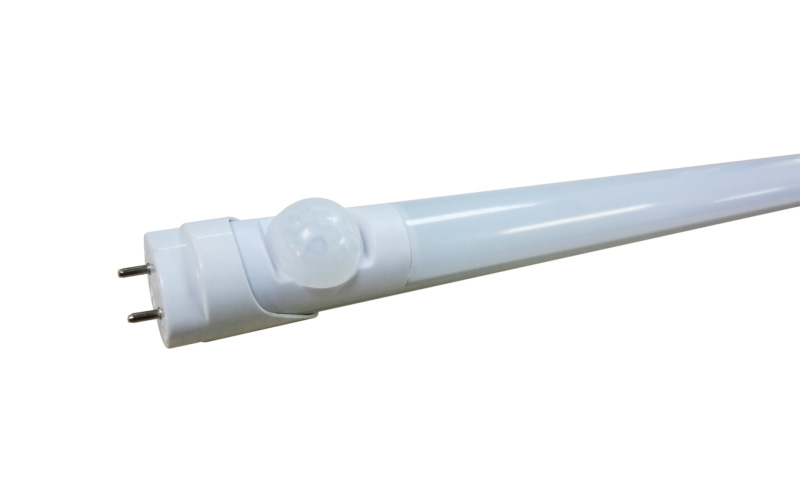

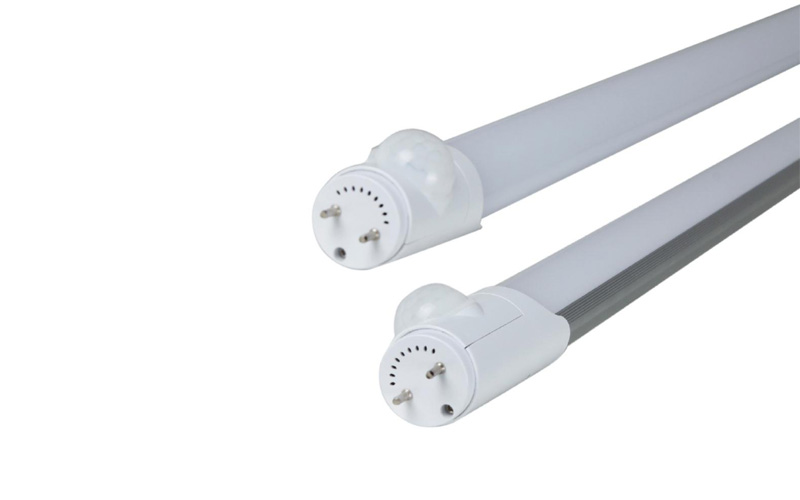

Infrared Sensor T8 LED Tube
0.6m 9W / 1.2m 18W / 1.5m 22W
1. This product has been CE, RoHS certification approval.
2. Use high quality 2835SMD LEDs.
3. High-grade PC cover with nice light transmittance (>85%).
4. 140º beam angle makes the lighting effect better.
5.Ambient temperature: -20℃~40℃, surface temperature: 42℃~45℃.
6.The T8 infrared sensor LED tube can be used in long-term lighting places, for example underground paking garage, energy saving 90% ener comparing with CFLs.
7. According to customers requirements, the tube that is micro-light or light off fully can be custom-made.
A. 100% Light up when people come, 10%-100% adjustably light up (2-4W) when people leave.
B. 100% light up when people come, 100% light off when people leave.
Model: SNS-T8S-60-9WG1
Induction distance: 5-8 meters
Power Consumption: 9W
Dimension: φ26 x L590mm
LED Type: 48pcs SMD2835
Luminous Flux: 900-1100lm
LED Color: WW, DW, PW
Color Temperature (K): 3000K, 4000K, 6000K
CRI: Ra>80
Input voltage: 95-265V AC
Work frequency: 50/60Hz
Power Supply: Non-isolated Power Supply
PF: >0.9
Beam Angle: 140°
Housing material: Aluminum + PC
PC Cover: Milky white cover
Operating Environment: -20°C to 40°C
Storage Environment: -20°C to 60°C
Theoretical Lifespan: 30000H
Warranty: 3 Years
Model: SNS-T8S-120-18WG1
Induction distance: 5-8 meters
Power Consumption: 18W
Dimension: φ26 x L1198mm
LED Type: 96pcs SMD2835
Luminous Flux: 1800-2000lm
LED Color: WW, DW, PW
Color Temperature (K): 3000K, 4000K, 6000K
CRI: Ra>80
Input voltage: 95-265V AC
Work frequency: 50/60Hz
Power Supply: Non-isolated Power Supply
PF: >0.9
Beam Angle: 140°
Housing material: Aluminum + PC
PC Cover: Milky white cover
Operating Environment: -20°C to 40°C
Storage Environment: -20°C to 60°C
Theoretical Lifespan: 30000H
Warranty: 3 Years
Model: SNS-T8S-150-22WG1
Induction distance: 5-8 meters
Power Consumption: 22W
Dimension: φ26 x L1498mm
LED Type: 110pcs SMD2835
Luminous Flux: 2000-2200lm
LED Color: WW, DW, PW
Color Temperature (K): 3000K, 4000K, 6000K
CRI: Ra>80
Input voltage: 95-265V AC
Work frequency: 50/60Hz
Power Supply: Non-isolated Power Supply
PF: >0.9
Beam Angle: 140°
Housing material: Aluminum + PC
PC Cover: Milky white cover
Operating Environment: -20°C to 40°C
Storage Environment: -20°C to 60°C
Theoretical Lifespan: 30000H
Warranty: 3 Years
1. Fish tank, chicken farms, pig farms, Herbs shed, vegetable shed, Bridges, commercial building edges.
2. Outdoor lighting, Refrigerator or freezer show lighting, Cold storage lighting, Other humid environments lighting, etc.
