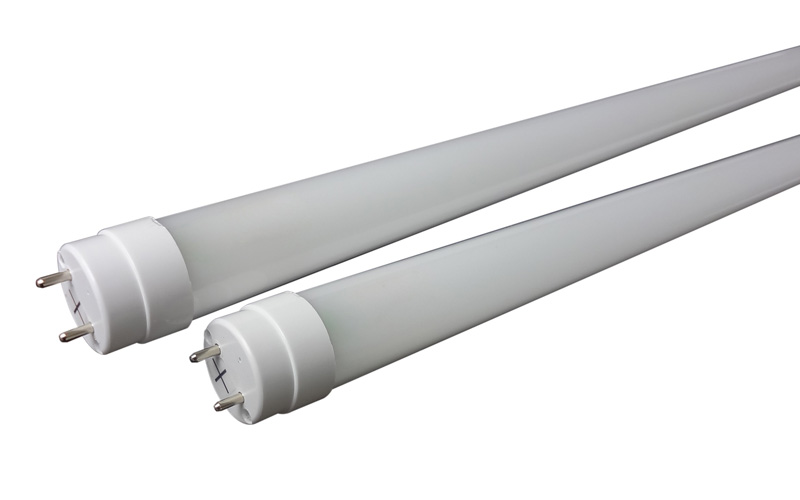

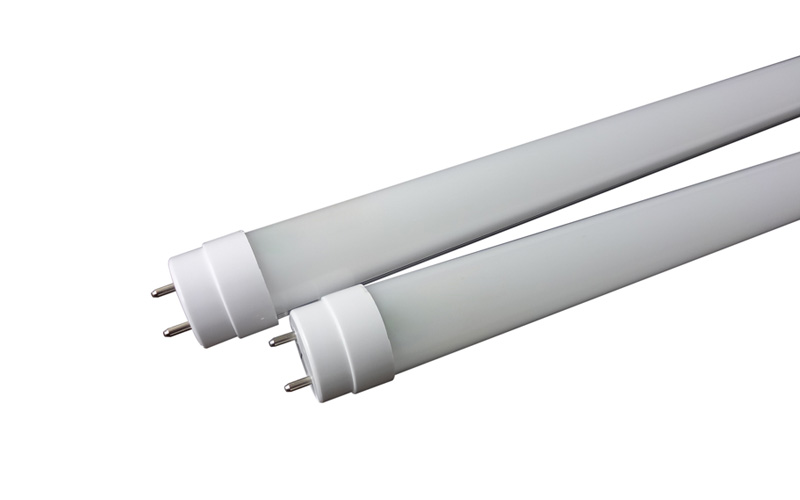

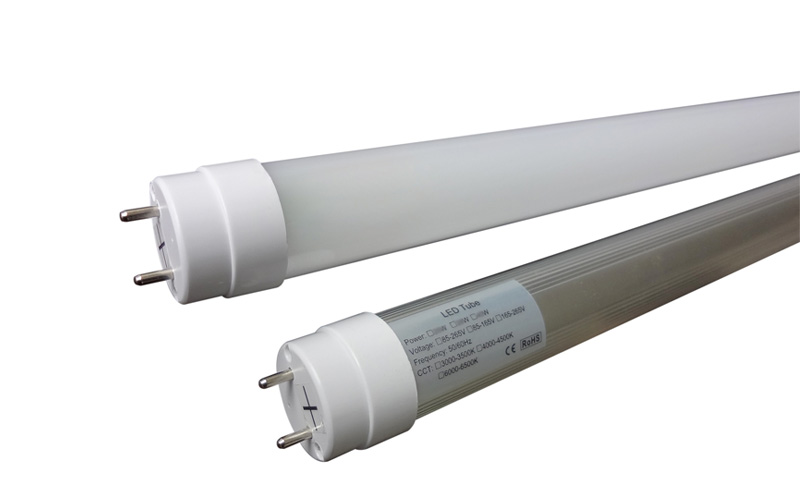

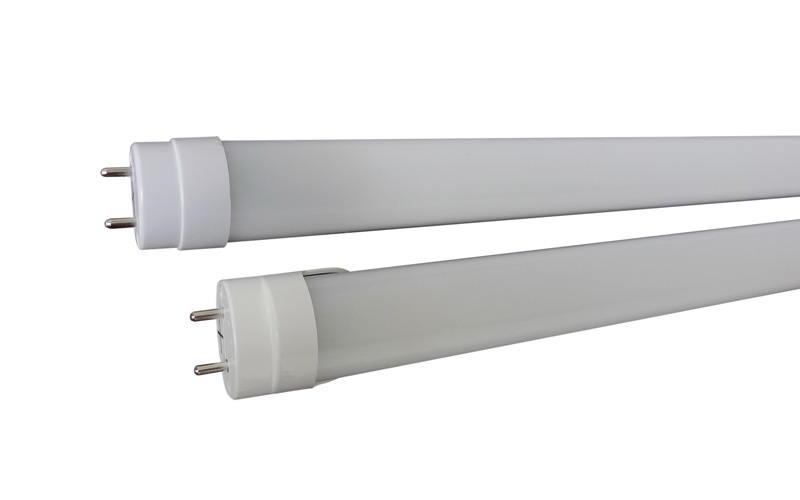

Electronic ballast & Magnetic ballast Compatible T8 LED Tube
1. This product has been CE, RoHS certification approval.
2. Use high quality 2835SMD LEDs.
3. High-grade PC cover with nice light transmittance (>85%).
4. Use the high quality aluminum PCB for LED’s better heat dissipation.
5. 180º beam angle makes the lighting effect better.
6. Ambient temperature: -20℃~40℃, surface temperature: 42℃~45℃.
7. With inside compatible power supply, can replace most fluorescent tubes directly, no need to change the original, no need to change the original wire.
Model: SNS-T8S-60-10WH4
Power Consumption: 10W
Dimension: φ26 x L590mm
LED Type: 60pcs SMD2835
Luminous Flux: 900-1100lm
LED Color: WW, DW, PW
Color Temperature (K): 3000K, 4000K, 6000K
CRI: Ra>80
Input voltage: 85-265V AC
Work frequency: 50/60Hz
With bottom Internal driver, PF>0.9
Beam Angle: 180°
Housing material: Aluminum + PC
PC Cover: Milky white cover
Operating Environment: -20°C to 40°C
Storage Environment: -20°C to 60°C
Theoretical Lifespan: 30000H
Warranty: 3 Years
Model: SNS-T8-60-10WFH
Power Consumption: 10W
Dimension: φ26 x L590mm
LED Type: 60pcs SMD2835
Luminous Flux: 900-1100lm
LED Color: WW, DW, PW
Color Temperature (K): 3000K, 4000K, 6000K
CRI: Ra>80
Input voltage: 95-277V AC
Work frequency: 50/60Hz
With bottom Internal driver, PF>0.9
Beam Angle: 180°
Housing material: Aluminum + PC
PC Cover: Milky white cover
Operating Environment: -20°C to 40°C
Storage Environment: -20°C to 60°C
Theoretical Lifespan: 30000H
Warranty: 3 Years
Model: SNS-T8S-120-20WH4
Power Consumption: 20W
Dimension: φ26 x L1198mm
LED Type: 110pcs SMD2835
Luminous Flux: 1800-2000lm
LED Color: WW, DW, PW
Color Temperature (K): 3000K, 4000K, 6000K
CRI: Ra>80
Input voltage: 85-265V AC
Work frequency: 50/60Hz
With bottom Internal driver, PF>0.9
Beam Angle: 180°
Housing material: Aluminum + PC
PC Cover: Milky white cover
Operating Environment: -20°C to 40°C
Storage Environment: -20°C to 60°C
Theoretical Lifespan: 30000H
Warranty: 3 Years
Model: SNS-T8-120-18WFH
Power Consumption: 18W
Dimension: φ26 x L1198mm
LED Type: 120pcs SMD2835
Luminous Flux: 1700-1900lm
LED Color: WW, DW, PW
Color Temperature (K): 3000K, 4000K, 6000K
CRI: Ra>80
Input voltage: 95-277V AC
Work frequency: 50/60Hz
With bottom Internal driver, PF>0.9
Beam Angle: 180°
Housing material: Aluminum + PC
PC Cover: Milky white cover
Operating Environment: -20°C to 40°C
Storage Environment: -20°C to 60°C
Theoretical Lifespan: 30000H
Warranty: 3 Years
Model: SNS-T8S-150-25WH4
Power Consumption: 25W
Dimension: φ26 x L1498mm
LED Type: 144pcs SMD2835
Luminous Flux: 2400-2600lm
LED Color: WW, DW, PW
Color Temperature (K): 3000K, 4000K, 6000K
CRI: Ra>80
Input voltage: 85-265V AC
Work frequency: 50/60Hz
With bottom Internal driver, PF>0.9
Beam Angle: 180°
Housing material: Aluminum + PC
PC Cover: Milky white cover
Operating Environment: -20°C to 40°C
Storage Environment: -20°C to 60°C
Theoretical Lifespan: 30000H
Warranty: 3 Years
1. Indoor Lighting, Schools, Universities, Hospital, Conference Rooms, Show Rooms.
2. Factories, Offices, Chain Stores, upermarkets, Metro Station, Underground Parking.
